Product   /   Industrial Automation  /  FMDW .

       Features:

• Simple and user-friendly.

• Programmable Set Points for coarse feed, fine feed, in-flight correction,

• Pneumatic & Electric Failsafe design.

• Full scale calibration through keyboard.

• No Drum Detection.

• Drum Hole Misalignment detection.

• Auto & Manual mode.

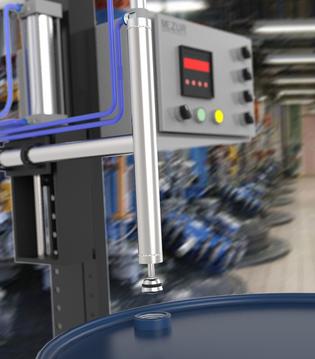

  FMDW

  Weighing Based Drum Filling Machine

​​​Specification:

Capacity                                                : 50 to 300 Kg / 5 to 50 Kg.
Accuracy                                               : ±20 Grms.(Up to 50 Kg)  ±100 Grms. (Above 50 kg).
Platform Size                                         : 650mm X 650mm    /    500mm X 500mm
Controller Housing                                 : Weather Proof / Flameproof
Type of filling Nozzle*                            : Fixed / Moving Up & Down / Surface Filling.
Nozzle End Flow cut-off*                       : With / Without
Wetted parts                                          : SS304  / SS316
Structure / Platform                               : MS / SS304
Roller on Platform                                 : With / Without
Idler Roller                                             : Straight / Angular

* Contact factory for more detail

FMDW – Weighing Based Drum Filling Machine is compact, Accurate, robust in design. FMDW consists of a filling controller, weighing platform and a dual stage filling valve. The Filling Controller is microcontroller based with a fast sampling ADC. The Load cell is mounted below the weighing platform to sense the Weight and send signals to the filling controller. The dual stage-filling valve is a pneumatic valve operated in coarse and fine mode to achieve the required accuracy.
