       Features:

• Cost effective with no moving parts.

• Easy to install with field adjustable switch points.

• Variety of electrode constructions to suit wide range of services.


Product   /   Level   /  LTC .

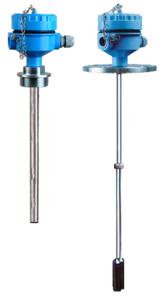

  LTC
  Capacitance Type Level Transmitter

       Application:

• Utilities

• Beverage Industry

• Medical

• Pharmaceuticals

• Food Processing


​Specification:
Enclosure                                                                              : W/P IP65 / Ex. Proof Gr IIA IIB / IIC
MOC of wetted parts                                                            : SS304 / SS316
Process connection                                                             : Flanged / Threaded.
Conduit Connection                                                             : 1/2” BSP / ½” NPT - DCCG
Output                                                                                     : 4-20 mA
Resolution                                                                              : 5 mm
Range (Probe length)                                                          : 200-3000mm in Rigid probe
                                                                                                   Upto 15000 in flexible Probe
Power supply                                                                         : 24 VDC.
Permissible Load                                                                  : 500Ω
Max. Operating temperature                                               : 100 ̊C.
Max. Pressure                                                                       : 5 Kg/cm2.

​​​​Mezur Technologies.
INDUSTRIAL GALA NO.02, FIRST FLOOR, PLOT NO.132, BEHIND GLOBE CHAMBERS, OPP SBPP BANK, VIA CHAR RASTA, SILVASSA ROAD, GIDC, VAPI, 396195.

Copyright Mezur Technologies.All rights reserved.

LTC is used in sensing level of variety of Liquids. It is available for conductive as well as nonconductive liquids. It is offered with PTFE sleeve for better insulation & to withstand high temperature in conductive tanks the insulated probe acts as one electrode & the tank wall as another electrode, any change in liquid level the dielectric value will change thereby changing the capacitance value
proportional to the liquid level. In case of non-conductive tanks, a reference probe is provided as ground electrode. The output is 4-20mA, 4 wire connection for isolated supply & 3 wire for non-isolated supply. 2 wire loop powered output is also available.
