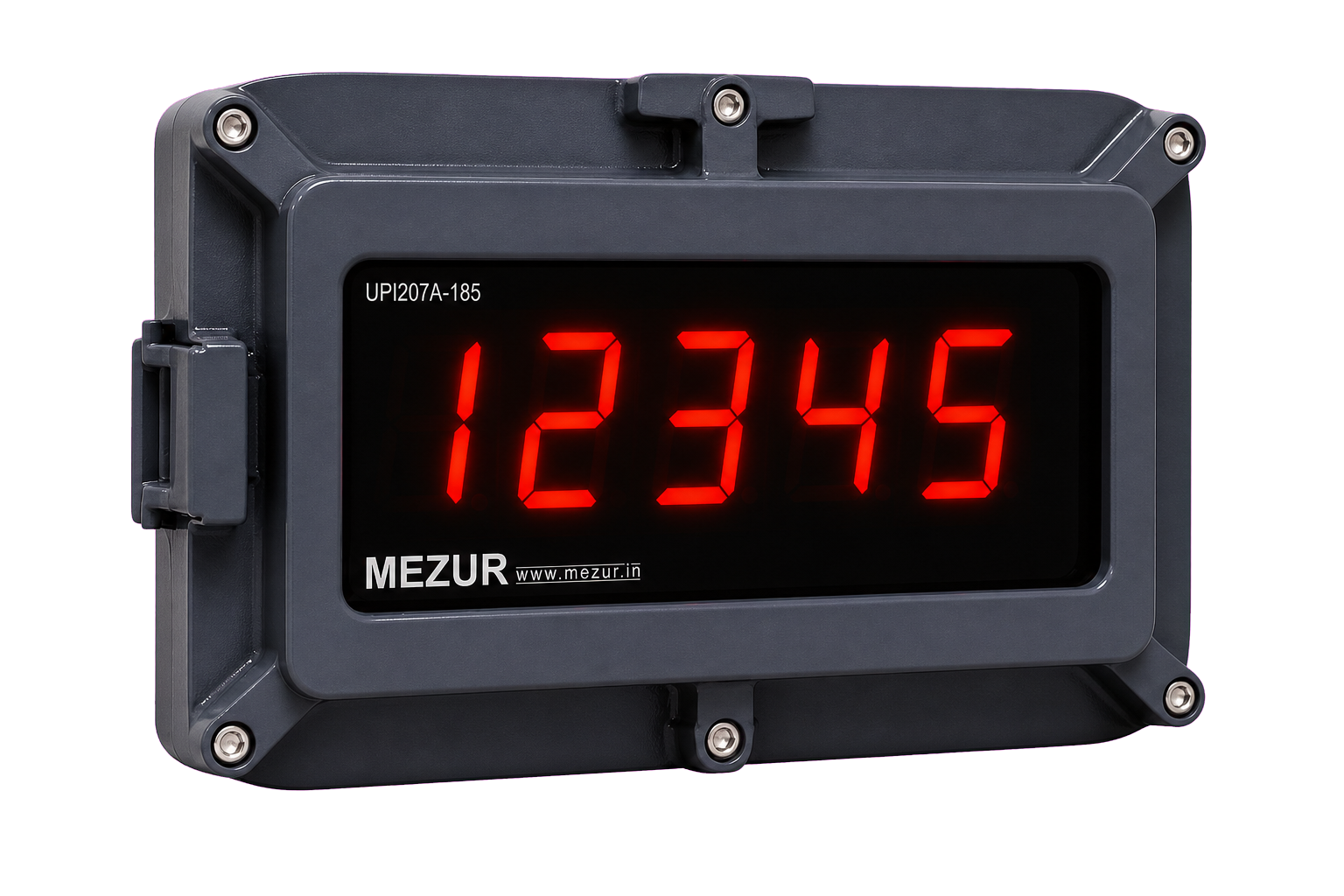

Hazardous areas
Flameproof
Rugged certified enclosure for hazardous process locations, with a clear high-visibility display.
LIV Volumetric Level Indicator
Tank-specific volume and weight indication from any 4-20 mA level transmitter, calibrated at every millimetre.
1 mm resolutionVolume or weightAny tank geometry
Level becomes inventory
A true volumetric reading—not just tank height
LIV converts a transmitter's level signal into the actual quantity stored inside the vessel, even when the tank geometry is non-linear.
01Radar measures levelContinuous tank height measurement
024-20 mA signalStandard transmitter output to LIV
031 mm calibration tablePre-loaded volume data for your tank
04Volume or weightDirect local indication in required units
Three configurations
Choose the installation that fits your plant

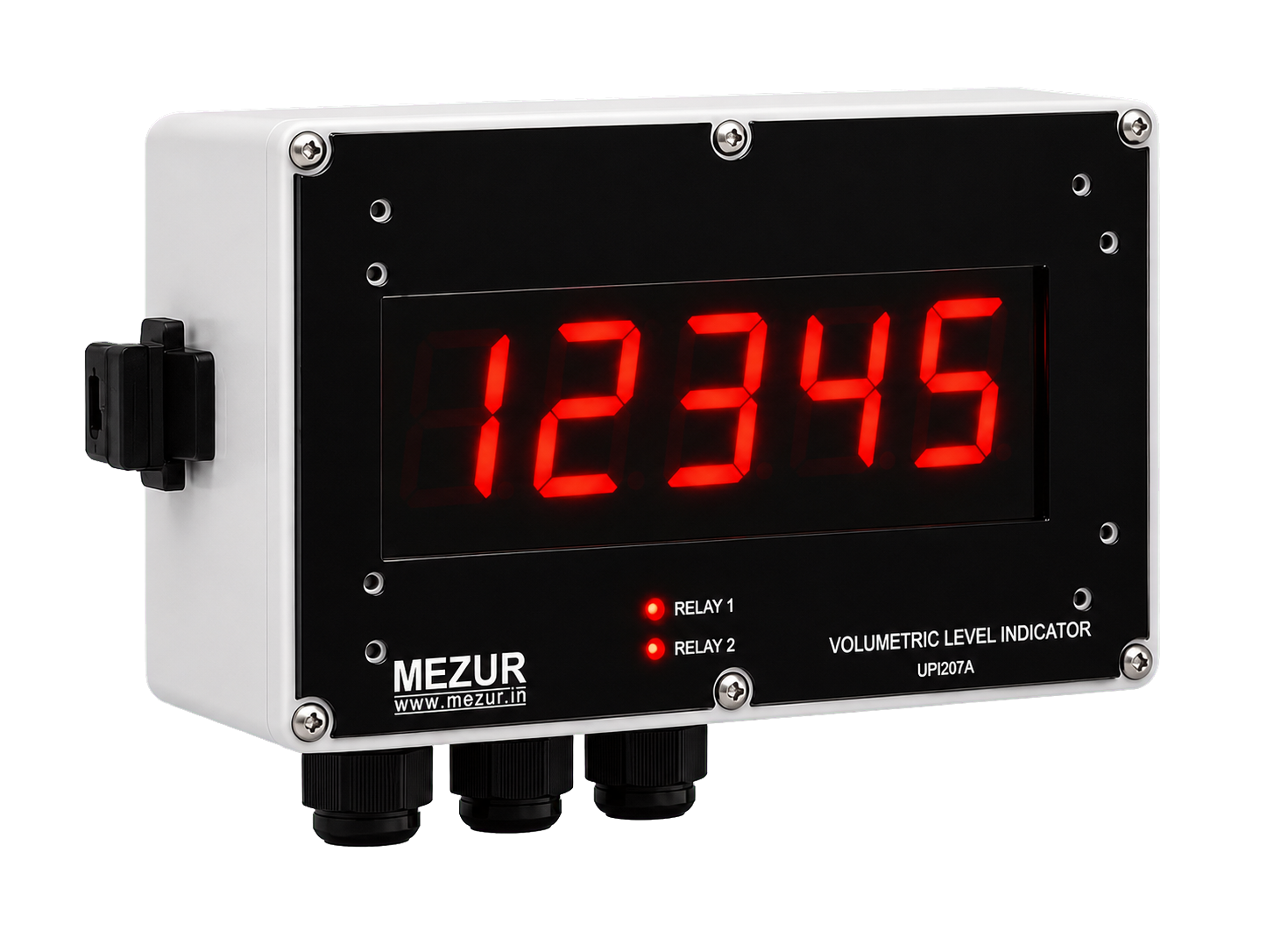

Field installation
Weatherproof
IP65 field display for outdoor and general industrial installations, available in multiple display sizes.

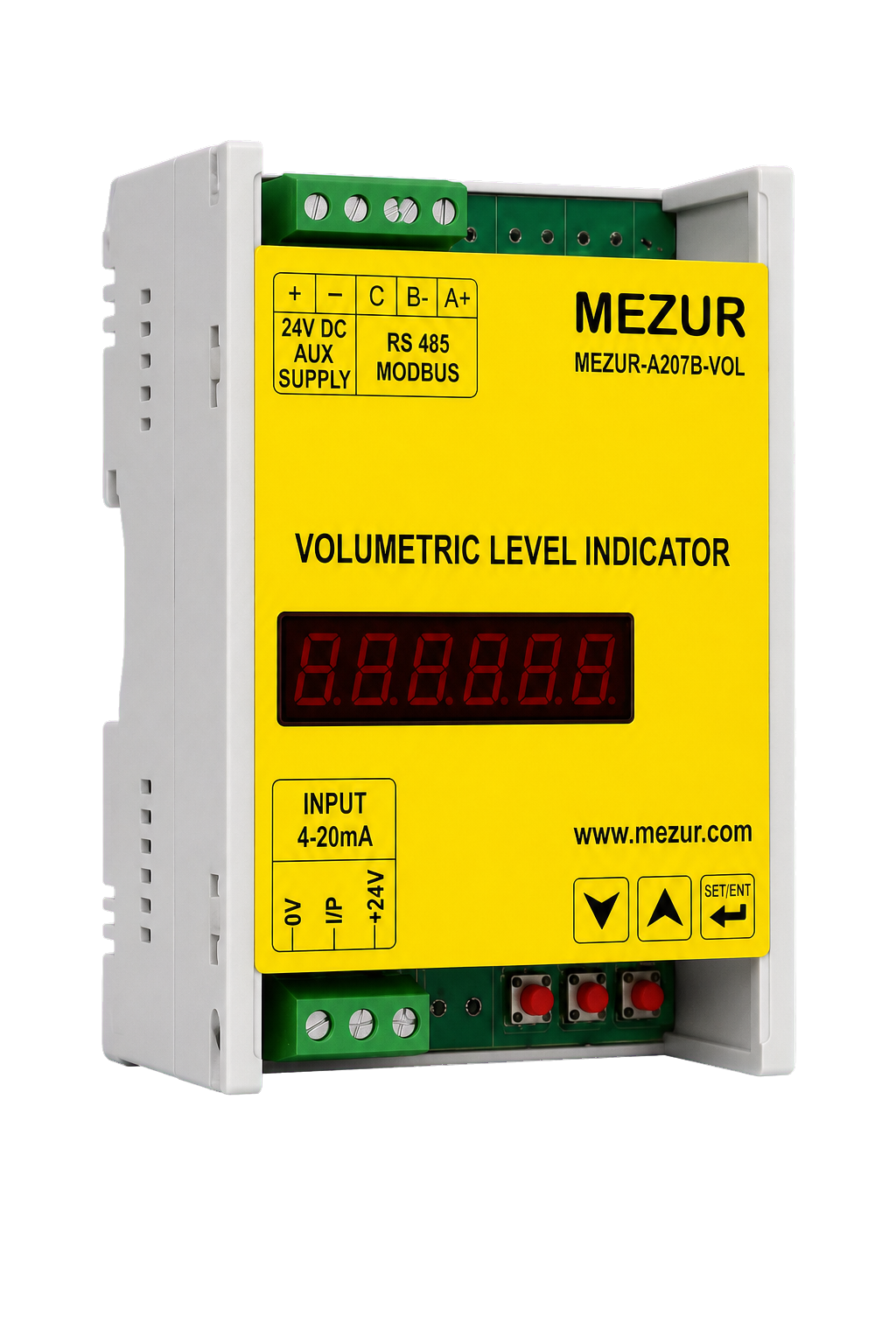

Control panels
DIN-Rail Mounted
Compact panel solution with local display and RS485 Modbus connectivity for control-system integration.
Tank-specific calibration
Accurate across complex vessel shapes
We calculate and preload the volume at every 1 mm of level using your tank dimensions and geometry.
Non-linear geometry
Horizontal Cylindrical Tanks
Precise volume conversion through the curved tank cross-section and dished ends.
Special vessels
Spherical Tanks
Millimetre-level lookup data converts changing cross-sectional area into actual inventory.
Compound profiles
Vertical & Conical Tanks
Handles straight walls, cones and combined vessel sections in one calibrated table.
LIV accepts the 4-20 mA output from radar, capacitance, magnetic, ultrasonic or other level transmitters. Mezur prepares a tank-specific calibration table from the vessel dimensions, with a stored quantity value for every 1 mm of measured level.
Key Features
- Direct indication in litres, cubic metres, kilograms or custom units
- Tank calibration data pre-loaded at 1 mm resolution
- Compatible with any standard 4-20 mA level transmitter
- Suitable for cylindrical, spherical, conical and custom tank profiles
- Up to five display digits and 99,999 count
- High/low relay outputs for alarms or control
- Optional 4-20 mA retransmission and RS485 Modbus
- Weatherproof, flameproof and DIN-rail configurations
Applications
Chemical / Petrochemical
Fertilizer Plants
Power Generation
Pharmaceutical
Water / Wastewater / ETP
Inventory Accounting
Specifications
| Configurations | Weatherproof / Flameproof / DIN-Rail |
| Display Size | 0.5 in to 12 in (Flameproof up to 4 in) |
| Display Count | Up to 5 digits / 99,999 |
| Display Units | m³ / L / kg / Custom |
| Input Signal | 4-20 mA / 0-10 V |
| Tank Resolution | 1 mm calibration increments |
| Power Supply | 24 VDC / 230 VAC |
| Transmitter Supply | With / Without built-in supply |
| Relay Output | Optional |
| Retransmission | 4-20 mA / RS485 Modbus |
Product Catalogue
Technical specifications, selection options and model-code information for LIV.
View Catalogue (PDF)Configure Your LIV
Send your tank drawing, dimensions, transmitter range and required display units.
