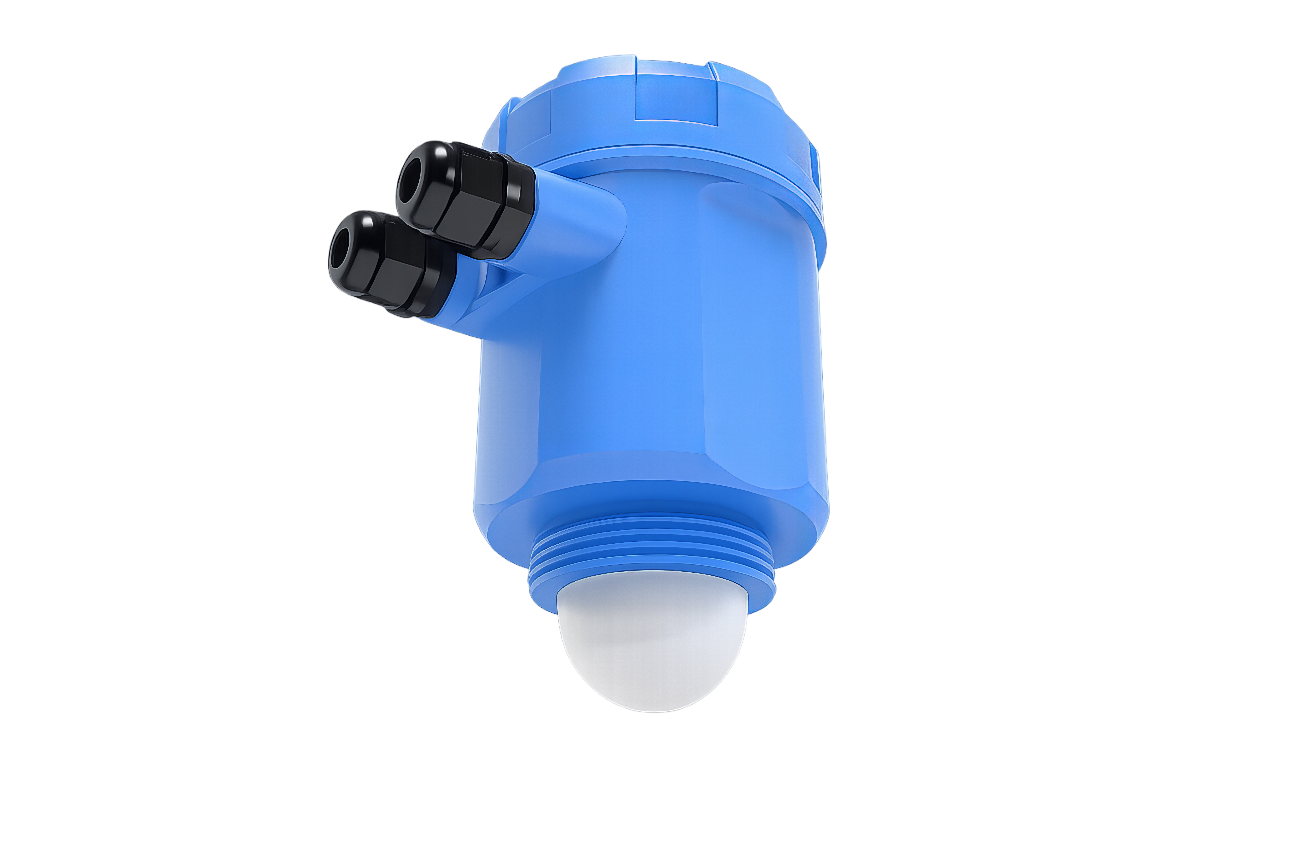

LTR-mini Mini Radar Level Transmitter
80 GHz FMCW non-contact radar — ideal for open channels, water/wastewater, flumes and liquid tanks. ±2 mm accuracy.
LTR-mini is the ideal sensor for non-contact level measurement in simple applications. Particularly suitable for open channel applications: water/wastewater, rain basins, flume, dam level monitoring. Can also be applied on liquid tanks or containers. Uses 80 GHz FMCW technology with ±3.5° beam angle for precise, focused measurement. Bluetooth connectivity and optional display for easy commissioning.
Key Features
- High frequency 80 GHz for superior focus and precision
- ±2 mm accuracy
- Small emitting angle ±3.5° — minimal interference
- G" thread connection; customised thread/flange available
- Optional display and Bluetooth for easy setup via smartphone
- Measurement ranges: 10 m, 20 m, 30 m, 50 m
- Multiple output options: 4–20 mA, RS485, Bluetooth, HART
- IP67 protection rating
Applications
Specifications
| Technology | FMCW Radar Level Transmitter |
| Frequency | 77 GHz – 81 GHz |
| Measurement Range | 10 m / 20 m / 30 m / 50 m |
| Accuracy | ±2 mm |
| Beam Angle | ±3.5° |
| Housing Material | ABS + PP |
| Process Connection | Thread / Flange (customised) |
| Process Temperature | -20°C to 70°C |
| Process Pressure | Normal atmospheric |
| Signal Output | 4–20 mA / RS485 / Bluetooth / HART |
| Power Supply | DC 24V (2-wire) or DC 8V–36V (4-wire) |
| Protection Rating | IP67 |
Product Datasheet
Full technical specifications for the LTR-mini Radar Level Transmitter.
View Datasheet (PDF)Need a Quote?
Tell us your measurement range, output type and mounting requirements.
Request a QuoteTypical Applications & Connections
How the LTR-mini 80 GHz radar is applied for non-contact level and flow.
Open-Channel & Flume Flow
Non-contact radar over weirs and flumes for flow-by-level measurement.
Water & Wastewater
Non-contact measurement immune to fouling and build-up.
Rain Basins & Storm Tanks
Reliable level in dirty, turbulent water.
Dam & Canal Monitoring
Long-range non-contact level for environmental sites.
Liquid Storage Tanks
80 GHz radar suits compact nozzles and small tanks.
No-Contact, Low-Maintenance
Nothing touches the liquid — ideal for aggressive or dirty media.
Choosing the right build: 80 GHz FMCW non-contact radar; ±2 mm accuracy; thread or flange mounting; ideal for water, wastewater and open-channel sites.
