FMDW Weight-Based Drum Filling System
Compact, accurate and robust drum filling with load-cell measurement and dual-stage valve control.

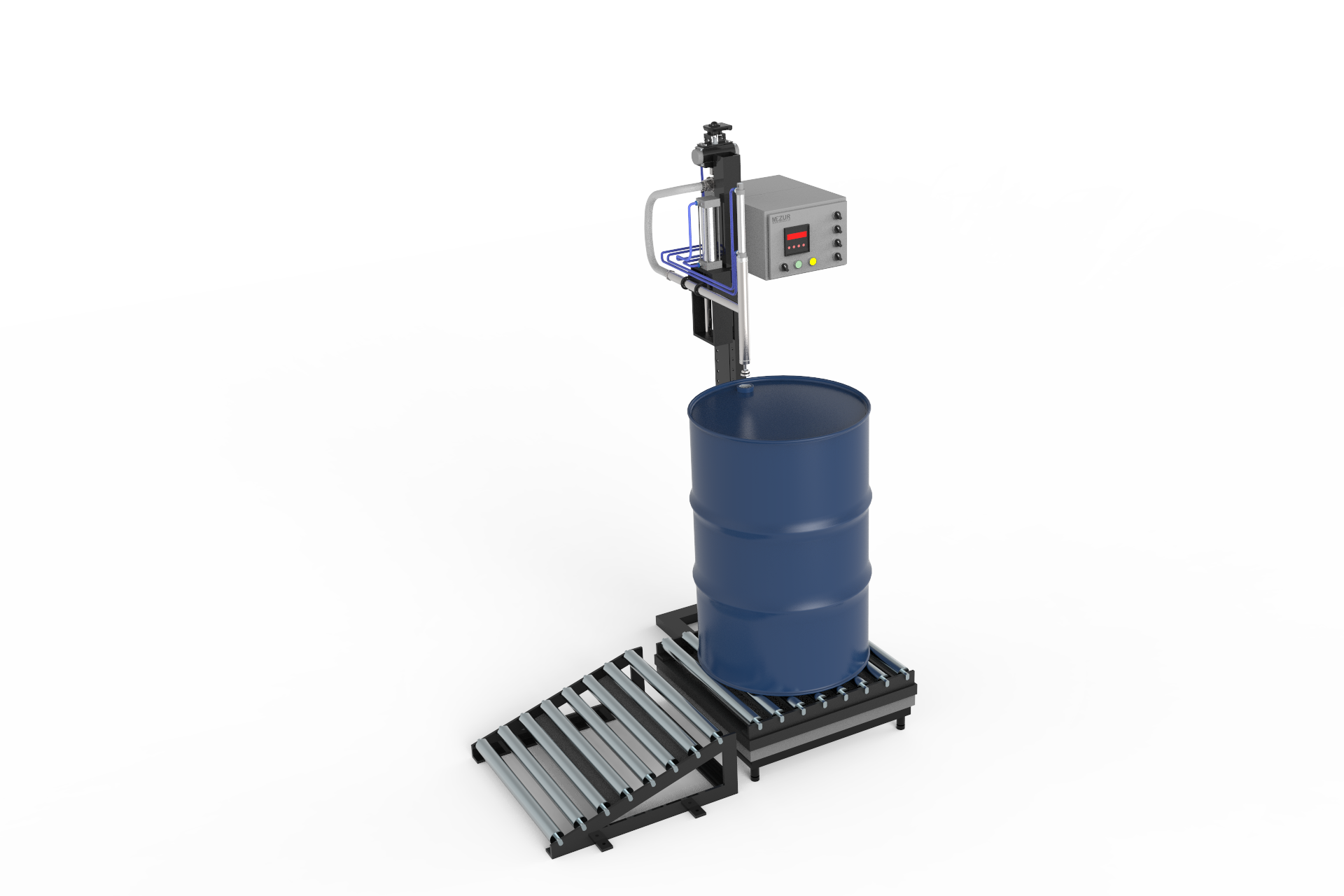

FMDW Weighing Based Drum Filling Machine is compact, accurate and robust in design. It consists of a filling controller, weighing platform and a dual stage filling valve. The filling controller is microcontroller based with fast sampling ADC. The load cell mounted below the weighing platform senses weight and sends signals to the filling controller. The dual stage filling valve operates in coarse and fine mode for required accuracy. Minimises operator exposure to hazardous materials.
Key Features
- Simple and user-friendly microcontroller-based controller
- Programmable set points for coarse feed, fine feed and in-flight correction
- Pneumatic & electric failsafe design for safety-critical applications
- Full scale calibration through keyboard — no external tools needed
- No drum detection and drum hole misalignment detection
- Auto and manual operating modes
- Weather Proof or Flameproof controller housing options
- Fixed, moving or surface filling nozzle types
Applications
Specifications
| Capacity | 50 to 300 Kg / 5 to 50 Kg |
| Accuracy | ±20 Grms (up to 50 Kg) / ±100 Grms (above 50 Kg) |
| Platform Size | 650×650 mm / 500×500 mm |
| Controller Housing | Weather Proof / Flameproof |
| Filling Nozzle Type | Fixed / Moving Up & Down / Surface Filling |
| Wetted Parts MOC | SS304 / SS316 |
| Structure / Platform MOC | MS / SS304 |
| Power Supply | Single Phase 230 VAC |
| Air Pressure Requirement | Min. 6 Bar, 0.5 CFM |
Filling Process
- Place empty drum on weighing platform
- Controller tares/zeroes the weight
- Coarse valve opens for fast filling
- Fine valve takes over near target weight
- In-flight correction compensates for drip
- Valve closes — fill complete with LED/buzzer indication
Product Datasheet
Full technical specifications for the FMDW weight-based drum filling system, including capacities, accuracy, construction and filling options.
View Datasheet (PDF)Typical Applications & Connections
How the FMDW weighing-based drum filling machine is applied on the packing line.
Accurate Drum & Carboy Filling
Load-cell weighing with dual-stage (coarse + fine) valve control for precise fill weight.
Hazardous & Flammable Liquids
Pneumatic, failsafe design for solvents and petroleum products.
Chemical & Lubricant Packing
SS304 / SS316 wetted parts for corrosive and oily media.
Food, Beverage & Pharma
Hygienic stainless construction for clean filling.
5–50 kg or 50–300 kg Ranges
Choose the capacity to match your drum or can size.
Automation-Ready
Integrates with Mezur PLC/HMI automation for batch counting and reporting.
Choosing the right build: Weight-based dual-stage filling, 50–300 kg or 5–50 kg; SS304/SS316 wetted parts; pneumatic + electric failsafe design; pairs with Mezur automation for batching and reporting.
