Level Gauges

Reliable visual level indication for tanks and pressure vessels — from simple float gauges to high-pressure magnetic indicators.

Product Range

Choose Your Level Gauge

Mezur level gauges cover everything from open atmospheric tanks to high-pressure, high-temperature vessels in chemical, petrochemical and utility applications.

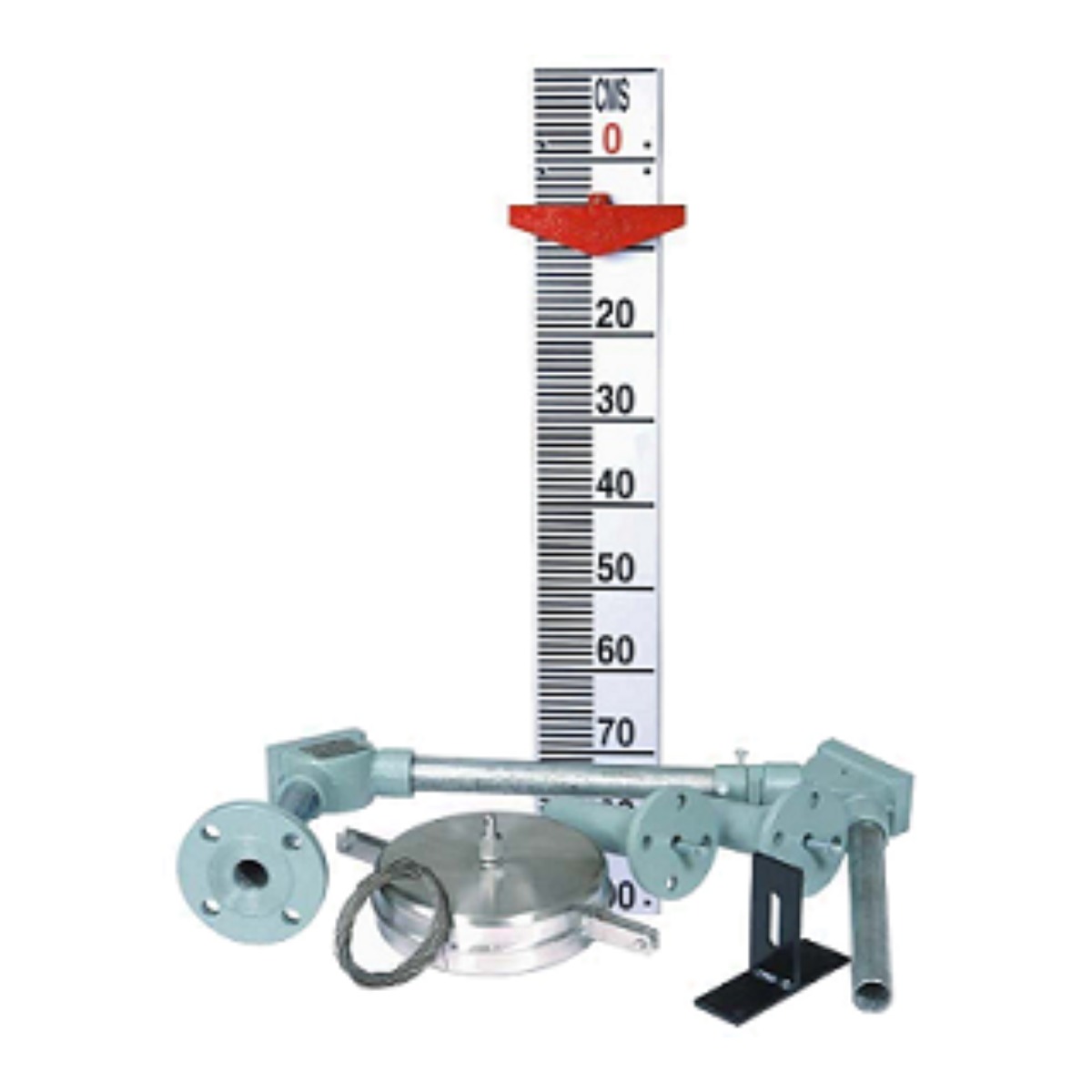

LGB Level Gauge – Float & Board
LGB

Level Gauge – Float & Board

Economical rope & float gauge for non-pressurized bulk storage tanks. Range up to 20 m.

Range: 1.5–20 mPressure: AtmosphericTemp: Up to 150°C

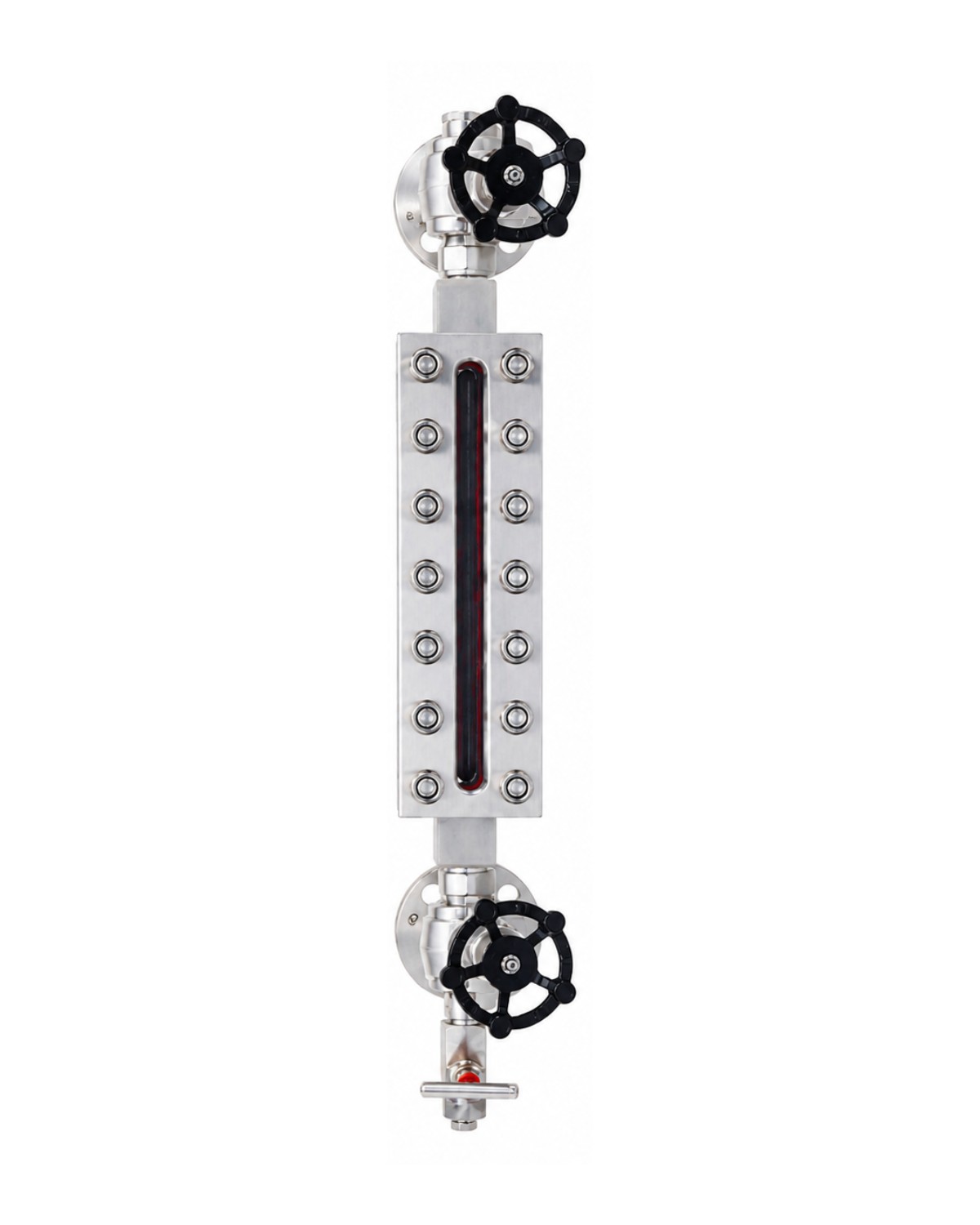

LGF Level Gauge – Flat Glass
LGF

Level Gauge – Flat Glass

Reflex & transparent flat-glass gauges for safe visual level under high pressure and temperature.

Range: 0.3–4 mPressure: Up to 100 barTemp: Up to 400°C

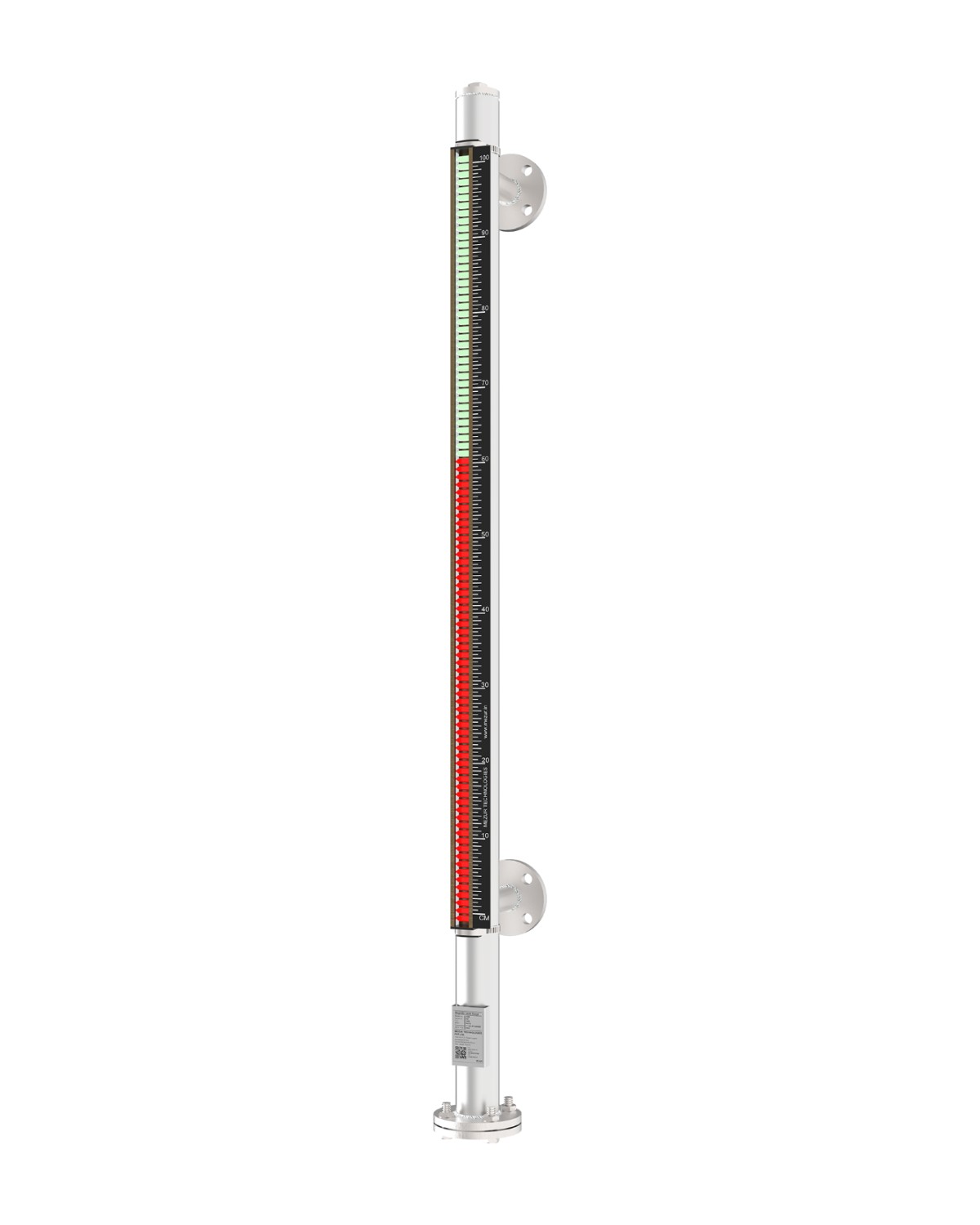

LGM Level Gauge – Magnetic
LGM

Level Gauge – Magnetic

Magnetic gauge for hazardous, toxic or aggressive liquids — no glass in contact with the media.

Range: Up to 6 mPressure: Up to 100 barTemp: Up to 400°C
LGT Level Gauge – Tubular
LGT

Level Gauge – Tubular

Simple tubular gauge with built-in isolating, drain & vent valves. Compact and easy to maintain.

Range: 0.3–3 mPressure: Up to 10 barTemp: Up to 150°C
Selection Guide

Which Level Gauge is Right for You?

Non-pressurized tanks (water, oil, chemicals)

Choose LGB — economical float & board for large atmospheric storage tanks up to 20 m range.

Clear liquids under pressure

Choose LGF Reflex for clean liquids or LGF Transparent for interface services or dirty/viscous liquids.

Hazardous / toxic / flammable liquids

Choose LGM Magnetic — no glass in contact with liquid, metallic chamber, optional alarm switches and transmitter.

Compact tank mounting, easy maintenance

Choose LGT Tubular — simple closed-loop design with built-in valves, suitable for most utility applications.

Need Help Selecting a Level Gauge?

Tell us your operating pressure, temperature, fluid type and range — our engineers will recommend the right model.
